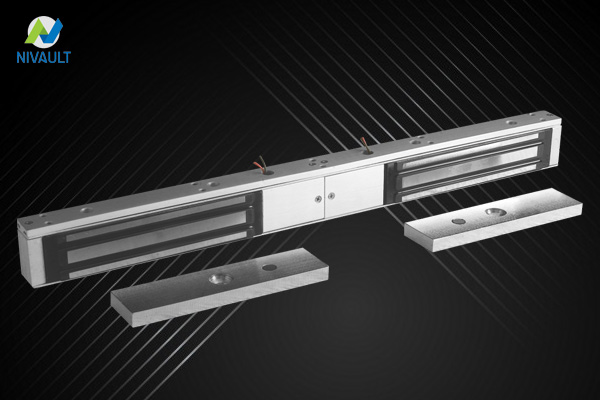

NV-600DL (DUAL LEAF)

SPECIFICATION:

• VOLTAGE TOLERANCE: 15%
• VOLTAGE INPUT: 12/24V DC
• CURRENT DRAW: 960MA @ 12VDC; 480MA @ 24VDC
• HOLDING FORCE: 600LBS X 2(272KGS X 2)
• OPERATING TEMPERATURE: 0-55'C
• ANTI-RUST SURFACE TREATMENT:
• BLUE ZINC PLATING/ NICKLE CHROME PLATING
• WARRANTY: 2 YEARS
• DIMENSION: 500LX42WX28T
• ARMATURE PLATE: 160LX40W12T
